Single Floor Plans

Think Modular! Homes starting from $141,598

Iconic 14′ Wide Single Sections

Iconic Island Dwellings
Iconic Island Dwellings

Think Modular!

Homes starting from $141,598

14' Wide Standards

BC Meridian Single 14′ Wide Series

Construction - Exterior

4/12 roof pitch (1.75 interior pitch) @ 24”O/C
15/32” roof sheathing

Ground Snow Load: 76psf

Residential, maintenance-free vinyl siding

Lifetime Warranty* shingles w/full underlayment

Engineered tubular steel frame with hitch

Floor joists: 2×8 @ 16” O/C

3/8” exterior wall sheathing (glued & Fastened)

House wrap

Colored metal fascia & soffit

Triple M rigid ext. wall system w/ insulated header

Frost free tap (shipped loose)

Dedicated receptacle for heat tape at kitchen sink

23/32” floor sheathing (flued & fastened)

8’ walls (2×6 exterior / 2×4 interior)

12” front and rear eave overhang

1.5” side eaves w/ ridge venting

6 mil vapor barrier

Construction - Insulation

Ceiling: R-40 Flat / R-35 Cathedral
Floor: R-40

Walls: R-22

Contsturction - Interior

½” stippled Gyproc ceiling
Vaulted ceiling – living room, dining room, kitchen

& family room (plan specific)

Carbon monoxide/Smoke detectors

Digital programable thermostat

Carpet with upgraded underlay in living room,

family room and primary bedroom

Foam-back linoleum (fully glued & rolled)

remainder of home

Contsturction - Gas & Electric

Convertible gas furnace with electronic ignition
Coil cavity under furnace

40 US gallon electric HWT

Plumbed for washer, wired for dryer

100-amp electric service panel

1-1/2” conduit from draw side of panel through floor

Braided water lines at sinks & toilets
Main water shut-off inside home at kitchen

sink

All fans & vents through roo

Contsturction - Doors & Ext. Lights

36” front and 32” rear exterior doors w/ screens
White Carrara interior doors

32” utility room door

Standard Carriage Light & GFI receptacles at all
exterior doors (shipped loose)

Distinctive Standard Features

Low E Argon windows & Sills complete w/
screens

4” accent boards around standard windows

(front & curbside)

½” painted drywall in Antique White

Nail holes in trim filled

Straight roof line

Cordless cellular blinds throughout

Décor Switches

River Dinette light in Dinning Room (plan
specific)

LED lighting throughout

Continuous rod shelving in close

Modern Crafted Kitchens

Black 30” Ceran-top range w/power rangehood
Black 18 cft. fridge

Adjustable track lighting (2)

Modular cabinets with adjustable shelving

Spacious pantry in kitchen (where applicable)

PVC cabinet doors with soft-close hinge

Laminate countertops with self-edge

Tight weave pantry shelving

Single lever faucet with spray

Single-row subway tile backsplash

Contemporary Baths

De-humidistat on main bath fan, all other fans
on separate switch

1-Piece smooth back tub/shower combination

in ensuite (plan specific)

1-Piece smooth back tub/shower combination

in main bath

Single-row subway tile backsplash

Optional Features
  • A/C ready
  • Full tile backsplash with decor insert
  • Flat panel cabinet door profile
  • Cabinet crown moulding
  • Stainless steel appliances
  • Black slider windows

BC1444-102-C-1

  • 14′ W x 44′ L
  • 616 Sqft
  • 1 Bedroom
  • 1 Bathroom
  • Washer/Dryer Hookups

BC1448-100-C-1

  • 14′ W x 48′ L
  • 672 Sqft
  • 1 Bedroom
  • 1 Bathroom
  • Washer/Dryer Hookups

BC1460-201-C-1

  • 14′ W x 60′ L
  • 840 Sqft
  • 2 Bedroom
  • 1 Bathroom
  • Washer/Dryer Hookups

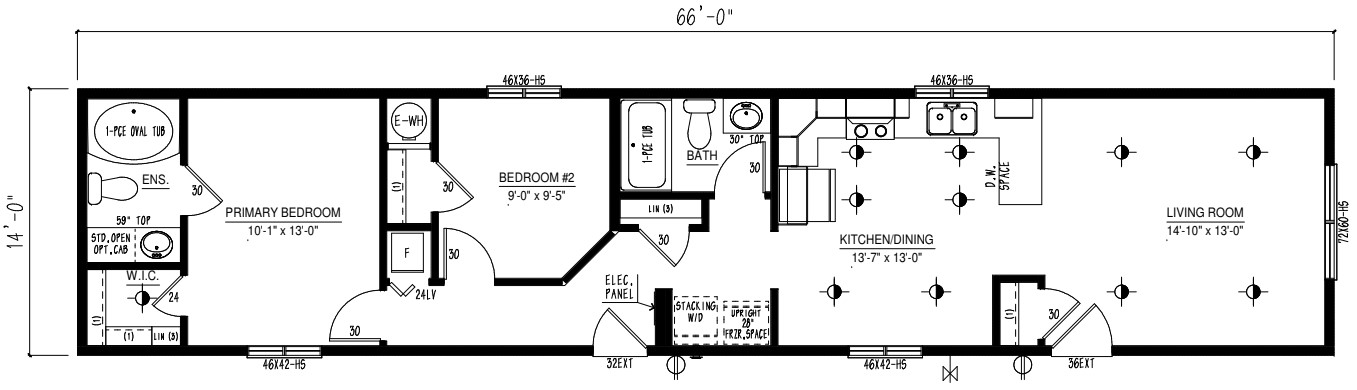

BC1466-222-C-1

  • 14′ W x 66′ L
  • 924 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1466-227-C-1

  • 14′ W x 66′ L
  • 924 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1466-229-C-1

  • 14′ W x 66′ L
  • 924 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

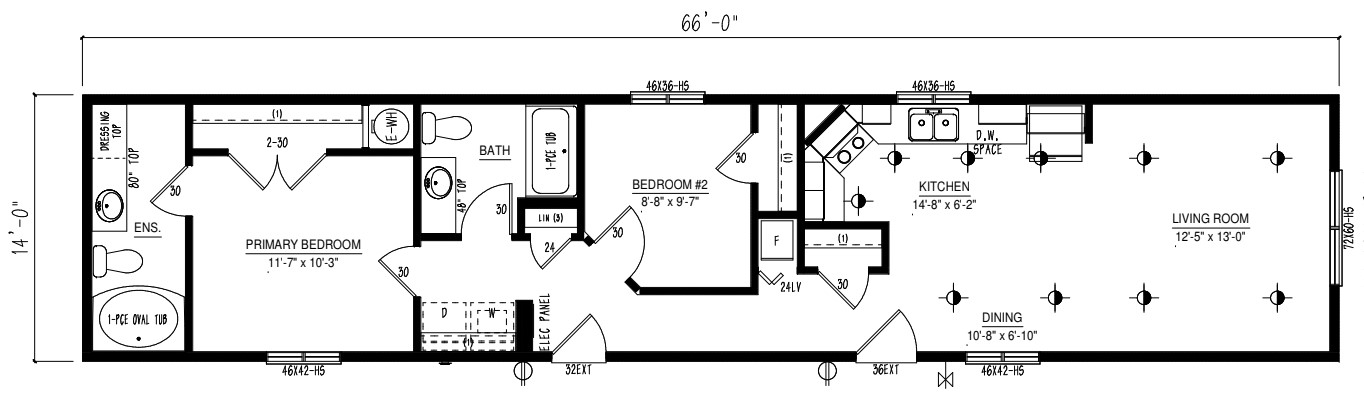

BC1466-230-C-1

  • 14′ W x 66′ L
  • 924 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

Iconic 16′ Wide Single Sections

Iconic Island Dwellings
Iconic Island Dwellings

Think Modular!

Homes starting from $141,598

16' Wide Standards

BC Meridian Single 16′ Wide Series

Construction - Exterior

3/12 roof pitch (1.25 interior pitch) @ 24”O/C
*Includes low-slope shingle application

15/32” roof sheathing

Ground Snow Load: 80psf

Residential, maintenance free vinyl siding

Lifetime Warranty* shingles w/full underlayment

Engineered tubular steel frame

Floor joists: 2×10 @ 16” O/C

3/8” exterior wall sheathing (glued & Fastened)

House wrap

Colored metal fascia & soffit

Triple M rigid ext. wall system w/ insulated header

Frost free tap

Dedicated receptacle for heat tape at kitchen sink

23/32” floor sheathing (flued & fastened)

8’ walls (2×6 exterior / 2×4 interior)

5” vented fixed side eaves (12” front & rear

overhang)

6 mil vapor barrier

Construction - Insulation

Ceiling: R-40 Flat / R-35 Cathedral
Floor: R-40

Walls: R-22

Contsturction - Interior

½” stippled Gyproc ceiling
Vaulted ceiling – living room, dining room, kitchen

& family room (plan specific)

Carbon monoxide/Smoke detectors

Digital programable thermostat

Carpet with upgraded underlay in living room,

and primary bedroom

Foam-back linoleum (fully glued & rolled)

remainder of home

Contsturction - Gas & Electric

Convertible gas furnace with electronic ignition
Coil cavity under furnace

40 US gallon electric HWT

Plumbed for washer, wired for dryer

100-amp electric service panel

1-1/2” conduit from draw side of panel through floor

Braided water lines at sinks & toilets
Main water shut-off inside home at kitchen

sink

All fans & vents through roo

Contsturction - Doors & Ext. Lights

36” front and 32” rear exterior doors w/ screens
White Carrara interior doors

32” utility room door

Standard Carriage Light & GFI receptacles at all
exterior doors (shipped loose)

Distinctive Standard Features

Low E Argon windows & Sills complete w/
screens

4” accent boards around standard windows

(front & curbside)

½” painted drywall in Antique White

Nail holes in trim filled

Straight roof line

Cordless cellular blinds throughout

Décor Switches

River Dinette light in Dinning Room (plan
specific)

LED lighting throughout

Continuous rod shelving in close

Modern Crafted Kitchens

Black 30” Ceran-top range w/power rangehood
Black 18 cft. fridge

Adjustable track lighting (2)

Modular cabinets with adjustable shelving

Spacious pantry in kitchen (where applicable)

PVC cabinet doors with soft-close hinge

Laminate countertops with self-edge

Tight weave pantry shelving

Single lever faucet with spray

Single-row subway tile backsplash

Contemporary Baths

De-humidistat on main bath fan, all other fans
on separate switch

1-Piece smooth back tub/shower combination

in ensuite (plan specific)

1-Piece smooth back tub/shower combination

in main bath

Single-row subway tile backsplash

Optional Features
  • A/C ready
  • Full tile backsplash with decor insert
  • Flat panel cabinet door profile
  • Cabinet crown moulding
  • Stainless steel appliances
  • Black slider windows

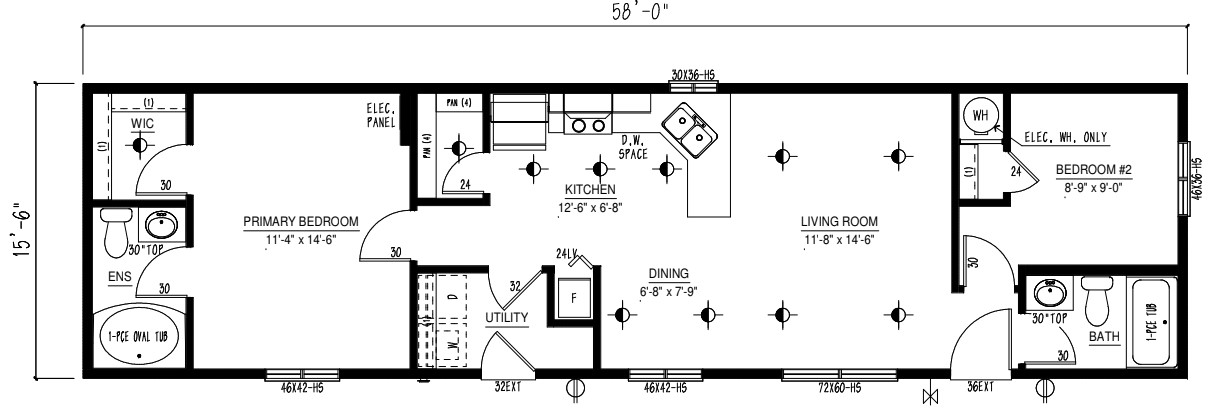

Iconic Island Dwellings floor plan BC1658-101-C-3

BC1658-101-C-3

  • 16′ W x 58′ L
  • 928 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1660-313-C-1

  • 16′ W x 60′ L
  • 960 Sqft
  • 2 Bedroom
  • 1 Bathroom
  • Washer/Dryer Hookups

BC1664-305-C-1

  • 16′ W x 64′ L
  • 1024 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1664-306-C-1

  • 16′ W x 64′ L
  • 1024 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1666-301-C-1

  • 16′ W x 66′ L
  • 1056 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1666-303-C-1

  • 16′ W x 66′ L
  • 1056 Sqft
  • 3 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1666-304-C-1

  • 16′ W x 66′ L
  • 1056 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1666-305-C-1

  • 16′ W x 66′ L
  • 1056 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

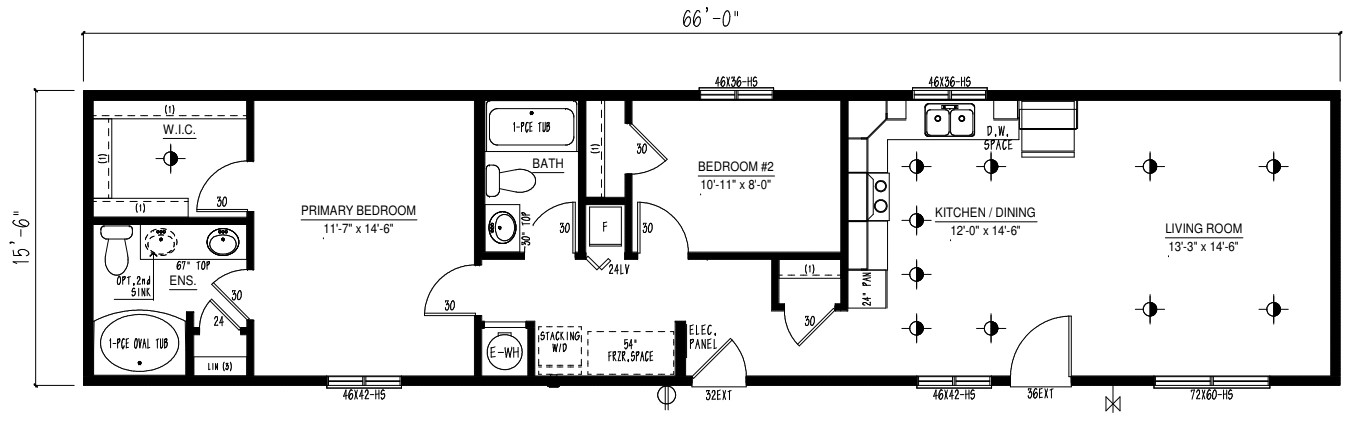

BC1666-306-C-1

  • 16′ W x 66′ L
  • 1056 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

BC1670-100-C-1

  • 16′ W x 70′ L
  • 1120 Sqft
  • 2 Bedroom
  • 2 Bathroom
  • Washer/Dryer Hookups

Please fill out the form and select 3 or 4 floor plans you would like more information on.

If you don’t see the floor plan option you are looking for, don’t worry we have more than 170 floor plans available. Please fill out the form and tell us what you are looking for. Thanks
